Search Engine

Clarifications/Functional Requirements

• Scope: general search or specialized search? web search or search on social media platform?
• Freshness: real-time search means incorporating trending queries and sources
• Personalization: logged-in user or not, location, search history

Key challenages: maximize relevance while minimize latency

Nonfunctional requirements

• Scale: number of websites? QPS (queries per second)?

Metrics

Online Metrics

• Click-through rate

$$Click through rate = \frac{Number of clicks}{Number of impressions} $$

• Successful session rate

Include the Dwell Time (the length of time a searcher spends viewing a webpage after they’ve clicked a link on a SERP-search engine per page) into consideration.

$$Session success rate = \frac{no. of successful sessions}{no. of total sessions}$$

• Caveat

Attention is to consider zero-click searches. A SEPR may answer the searcher’s query at the top.
Time of success: a low number of queries per session - successful search session.

Offline Metrics

• Normalized discounted cumulative gain (NDCG)

$$CG_p = \sum_{i=1}^{p}rel_i$$

In the cumulative gain, the rel = relevance rating of a document
i = position of document
p = the position up to which the documents are ranked

$$DCG_p = \sum_{i=1}^{p} \frac{rel_i}{log_2(i+1)}$$

The discounted cumulative gain allows us to penalize the search engines's ranking if highly relevant documents appear lower in the result list.

Caveat: $DCG$ can’t be used to compare the search engine’s performance across different queries on an absolute scale. (the $DCG$ for a query with a longer result list may be higher due to its length instead of its quality.)

$$NDCG_p = \frac{DCG_p}{IDCG_p}$$ where $IDCG$ is ideal discounted cumulative gain.

NDCG normalizes the DCG in the 0 to 1 score range by dividing the DCG by the max DCG or the IDCG of the query.

$$NDCG = \frac{\sum_{p=i}^NNDCG_i}{N}$$
An $NCDG$ value near 1 indicates good performance by the search engine.

• Caveat
  $NCDG$ does not penalize irrelevant search results.

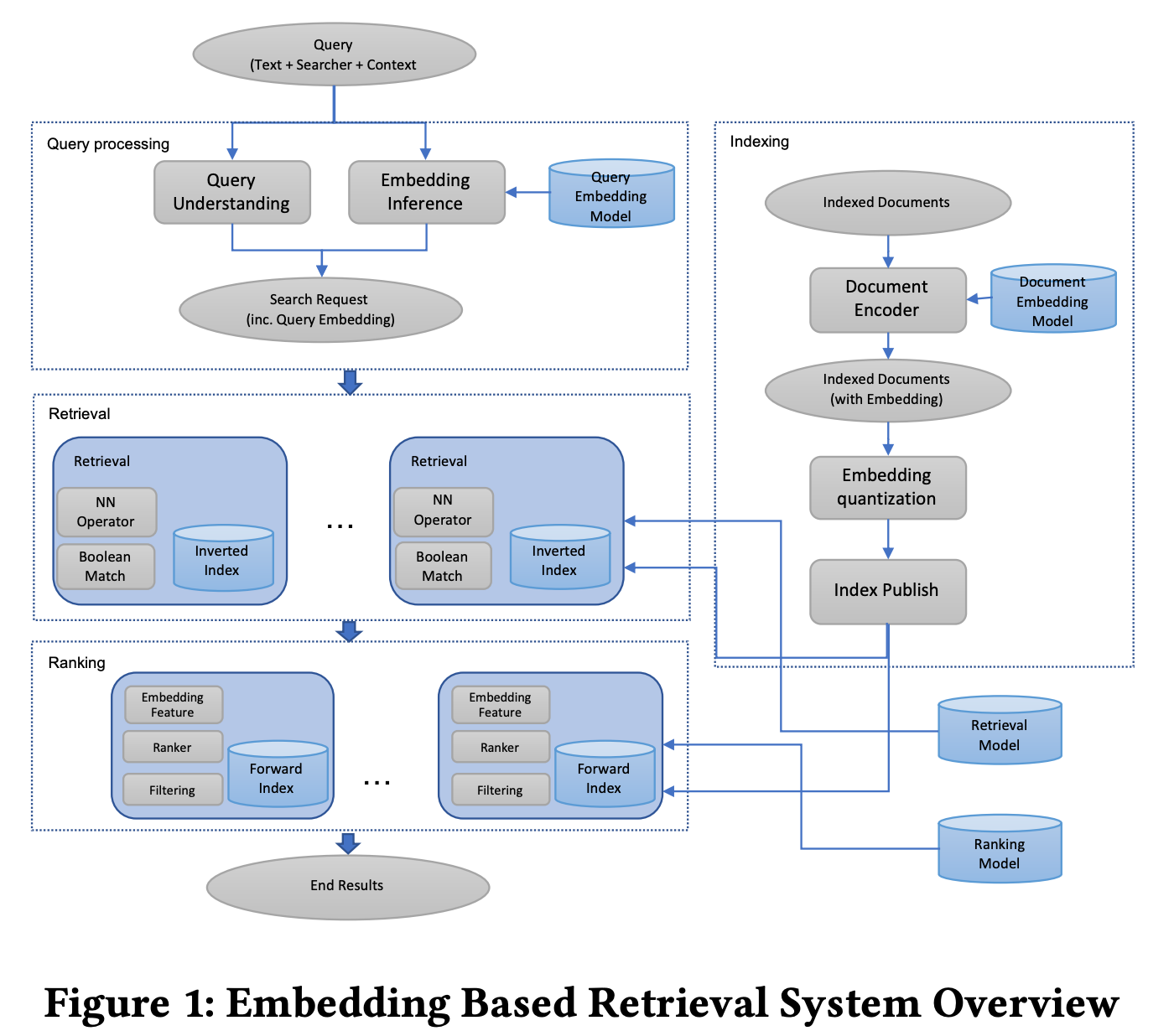

Architecture

Document Selection
Document selection is more focused on recall.

• Selection criteria
  • Inverted index: an index data structure that stores a mapping from content.
  • Go into the index and retrieve all the documents based on the above selection criteria. -> sorted relevant documents according to their relevance score. -> forward the top documents to the ranker.
• Relevance scoring scheme
  • Weighted linear scheme from:
    • Terms match: inverse document frequency or IDF score
    • Document popularity
    • Query intent match
    • Personalization match.

Training Data Generation

• Pointwise approach

  • Assign positive/negative samples based on click rate or successful session rate.
  • Caveat: Less negative examples. To remedy it, we use random negative examples.

• Pairwise approach

  • The loss function looks at the scores of document pairs as an inequality instead of the score of a single document.

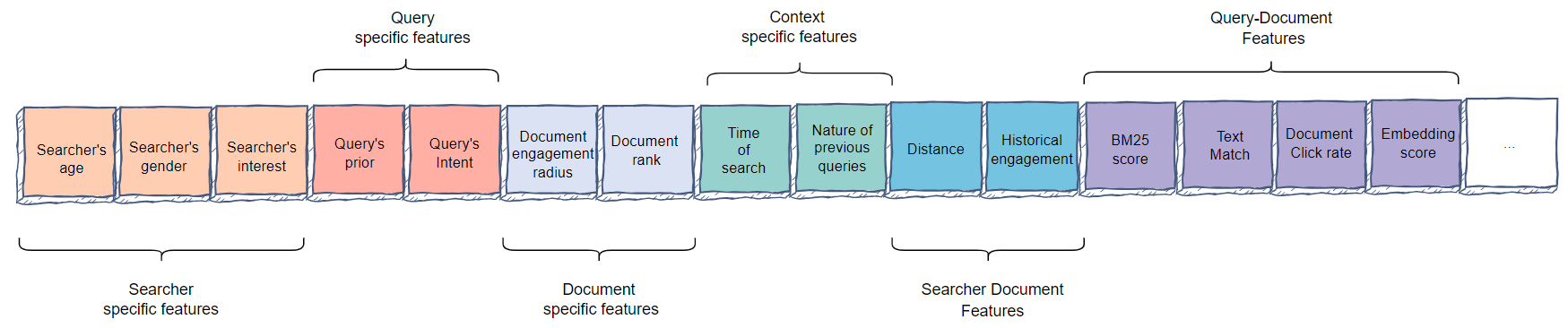

Feature Engineering

• Query-specific features
  • Query historical engagement
  • Query intent
    • Example: Users search for ‘pizza place’, the intent here is ‘local’.
• Document-specific features
  • Page rank
  • Document engagement radius
• Context-specific features
  • Time of search
  • Recent events
• Searcher-document features
  • Distance
  • Historical engagement
• Query-document features
  • Text match
  • Unigram or bigram
    • TF-IDF (term frequency-inverse document frequency) match score can also be an important relevance signal for the model.
  • Query-document historical engagement, like click rate
  • Embeddings. To calculate similarity score between the query’s vector and the document’s vector.

Model Development

• Search Retrieval

• Ranking

Stage-wise approach is being used. First stage will focus on the recall of the 5-10 documents in the first 500 results while the second stage will ensure precision of the top 5-10 relevant documents.

• Stage 1: pointwise approach
  • Simple ML algorithms
  • Performance: AUC or ROC
• Stage 2: pairwise approach
  • LambdaMART
  • LambdaRank

Example: Rental Search Ranking

• Problem statement:

  • Sort results based on the likelihood of booking.
  • Build a supervised ML model to predict booking likelihood -> Binary classification model.

• Metrics:

  • Offline metrics:
    • conversion rate: $conversion_rate = \frac{number_of_bookings}{number_of_search_results}$
  • Online metrics:
    • $DCG$
    • $NDCG$
    • $IDCG$

• Requirements

  • Training:
    • Imbalance data and clear-cut session
    • Train/validation data: Split data by time to mimic production traffic.
  • Inference:
    • Serving: low latency
    • Under-predicting for new listings: not enough data for model to estimate likelihood for brand new listings.

• Model

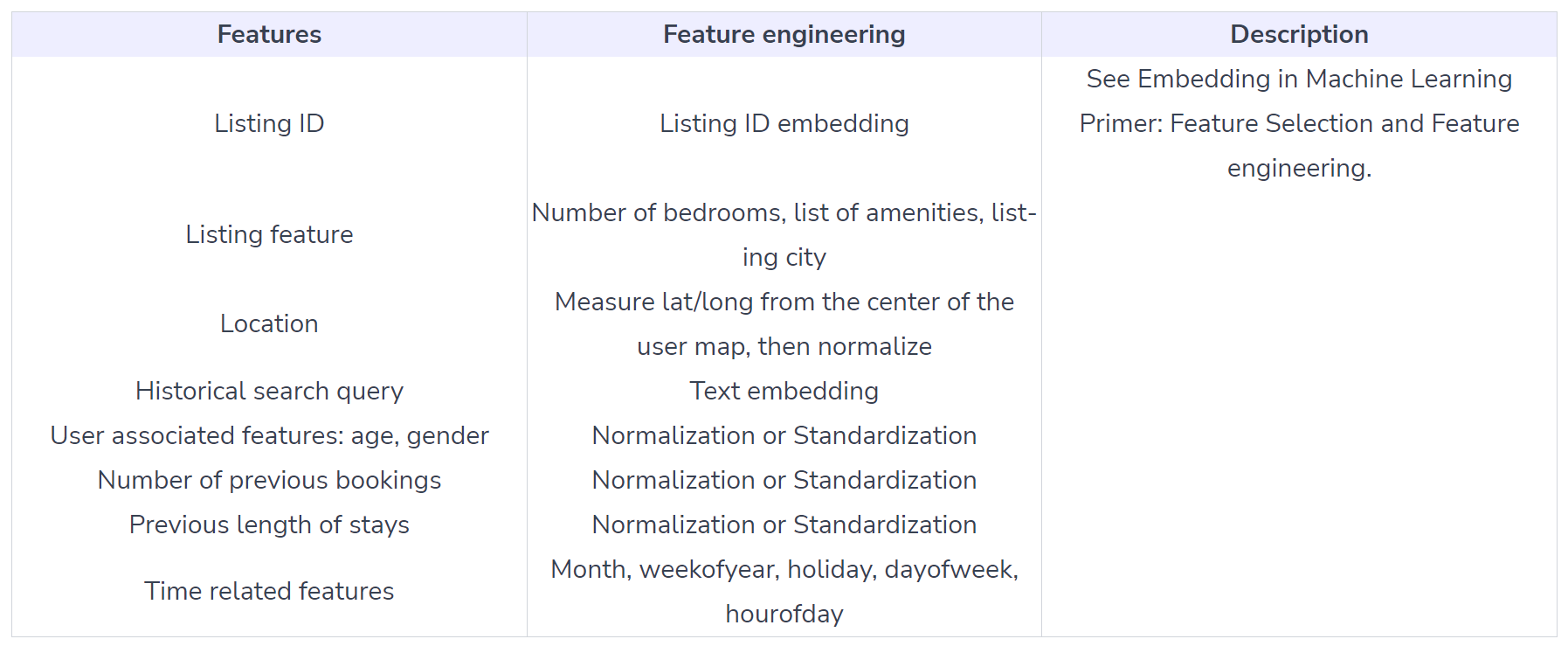

  • Feature Engineering
    • Geolocation (latitude/longitude): raw data is not smooth, we can use log of distance from the center center.
    • Favourite places.
  • Train data:
    • decide the length of training data by running experiments.
  • Model:
    • Input: User data, search query, and Listing data.
    • Output: binary classification, i.e., booking a rental or not
    • fully connected layers as baseline, or more modern architecture (VAE).

• Calculation&&Estimation

  • Assumptions: $5 * 30 * 10^8 = 1.25 b$ where 5-5 times per year per user, 30-see 30 rentals before booking, and 100m monthly active users.
  • Data Size:
    • $500 * 1.25 * 10^9$ where each row takes 500 bytes to store.
    • Keep the last 6 months or 1 year of data in the data lake, and archive old data in cold storage.
  • Scale: Support $150$ million users.

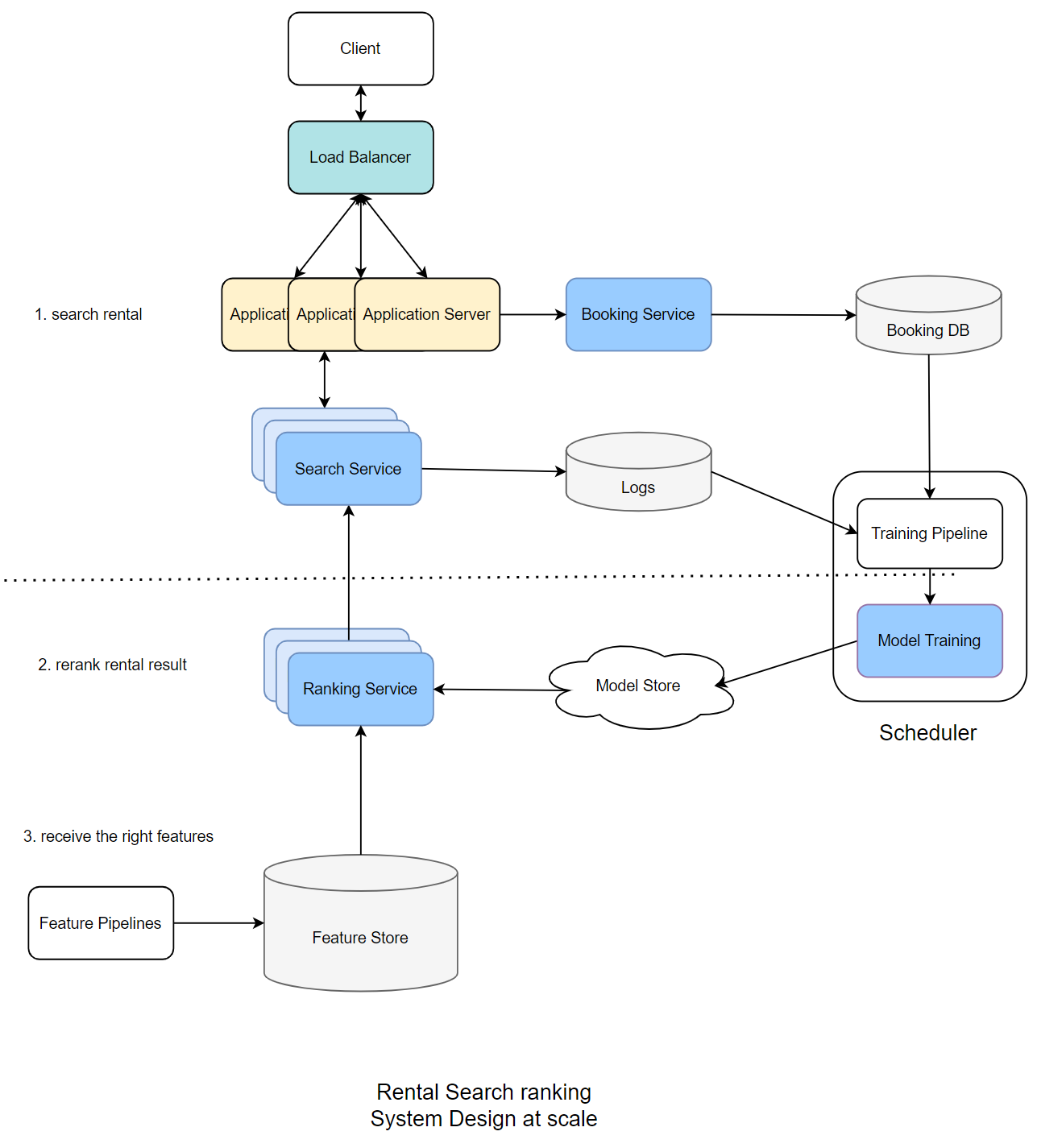

• High-level design

  • Feature pipeline: Process online features and store key-value feature pairs.
  • Feature Store: We need low latency ($<10ms$) during inference: MySQL Cluster, Redis, and DynamoDB.
  • To scale and serve millions of requests per second by scaling out Application Servers and use Load Balancers to distribute the load.
  • Scale Search/Ranking services.
  • Model Store is a distributed storage, like S3.
  • Log all candidates as training data which is sent from Search Service to cloud storage or Kafka cluster.

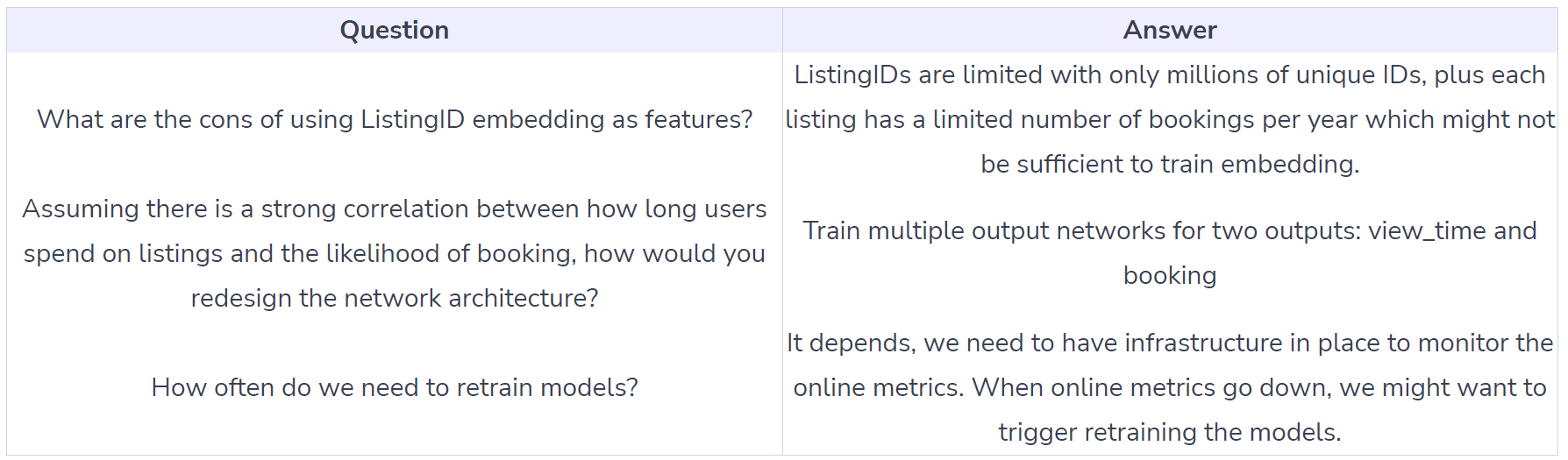

• Follow up Questions
